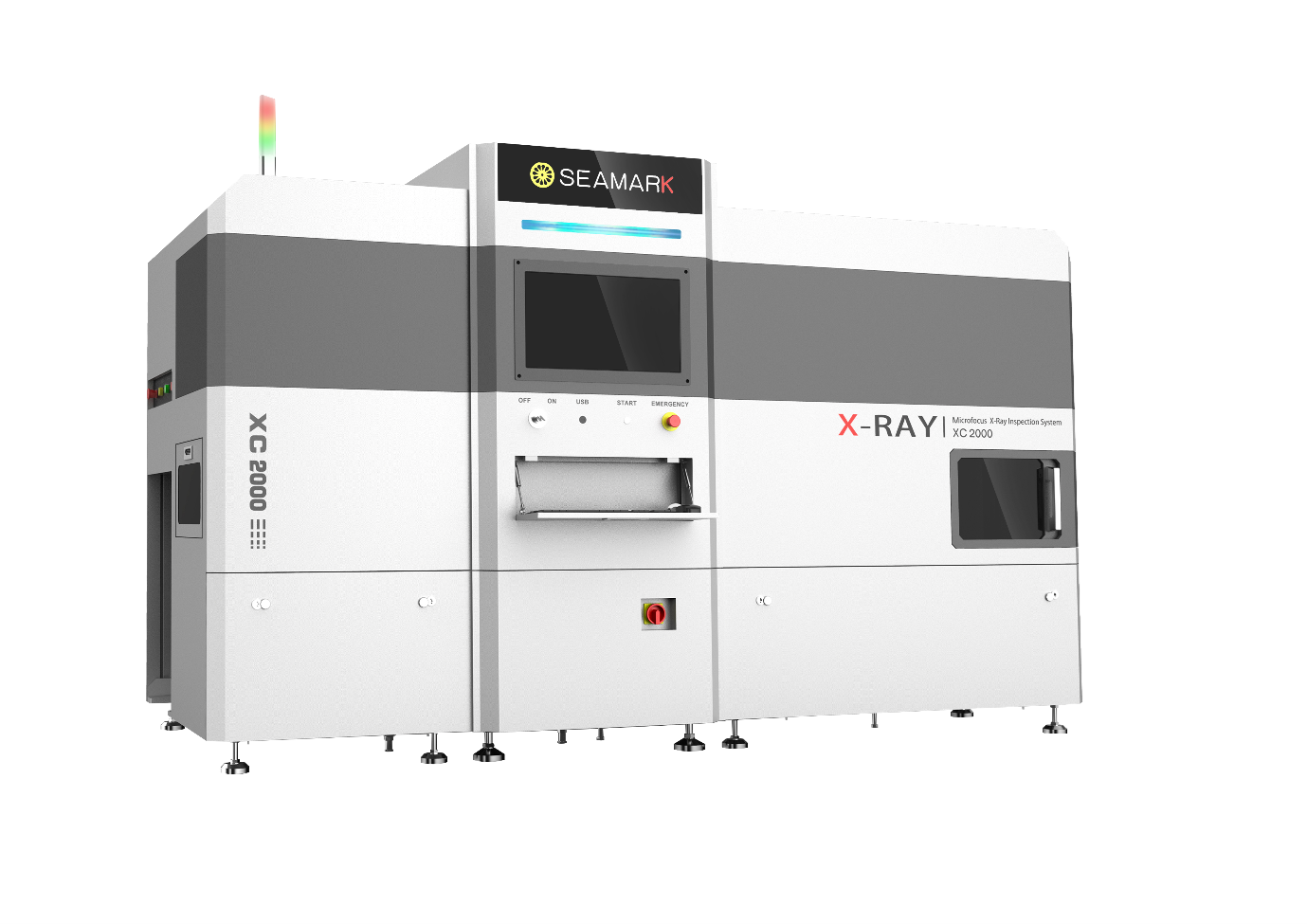

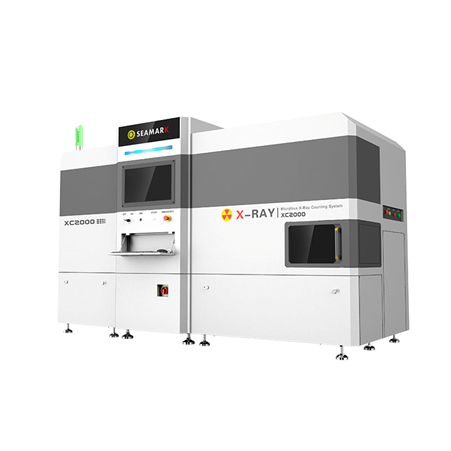

XC2000 Online Reel Counter
XC2000 is an online automatic counting machine. It uses the X-Ray perspective principle and the independently developed algorithm software with AI function, which can quickly and accurately calculate the number of materials in the reel, it can also upload MES data and automatically print the material labels.It has the functions of automatic code scanning, labeling, and automatic sorting failure, and can automatically load and unload materials to improve work efficiency and save labor
Type | Sealed Micro-Focus X-Ray Tube |
Voltage Range | 80 KV |
Operating Voltage Range | 30-80KV |
Operating Current Range | 200 -700μA |
Max Output Power | 56W |
Micro Focus Spot Size | 30μm-40μm |
Type | TFT Industrial Dynamic FPD |
Pixel Matrix | 3072×3072 |
Field of View | 427mm×427mm |
Resolution | 3.6Lp/mm |
Frame(1×1) | 6fps |
A/D Conversion Bit | 16bits |
Dimensions | L3200mm×W1600mm×H2100mm |
Input Power | 220V 10A 50-60HZ |
Max Sample Size | 510mm×650mm |
Control System | Industrial PC WIN7/ WIN10 64bits |
Net Weight | Approx 2200KG |
Radiation | <1μSv/h |
